DEYE
SUN-EVSE11K01-EU-AC
SKU: SUN-EVSE11K01-EU-AC In stock 2 pcs

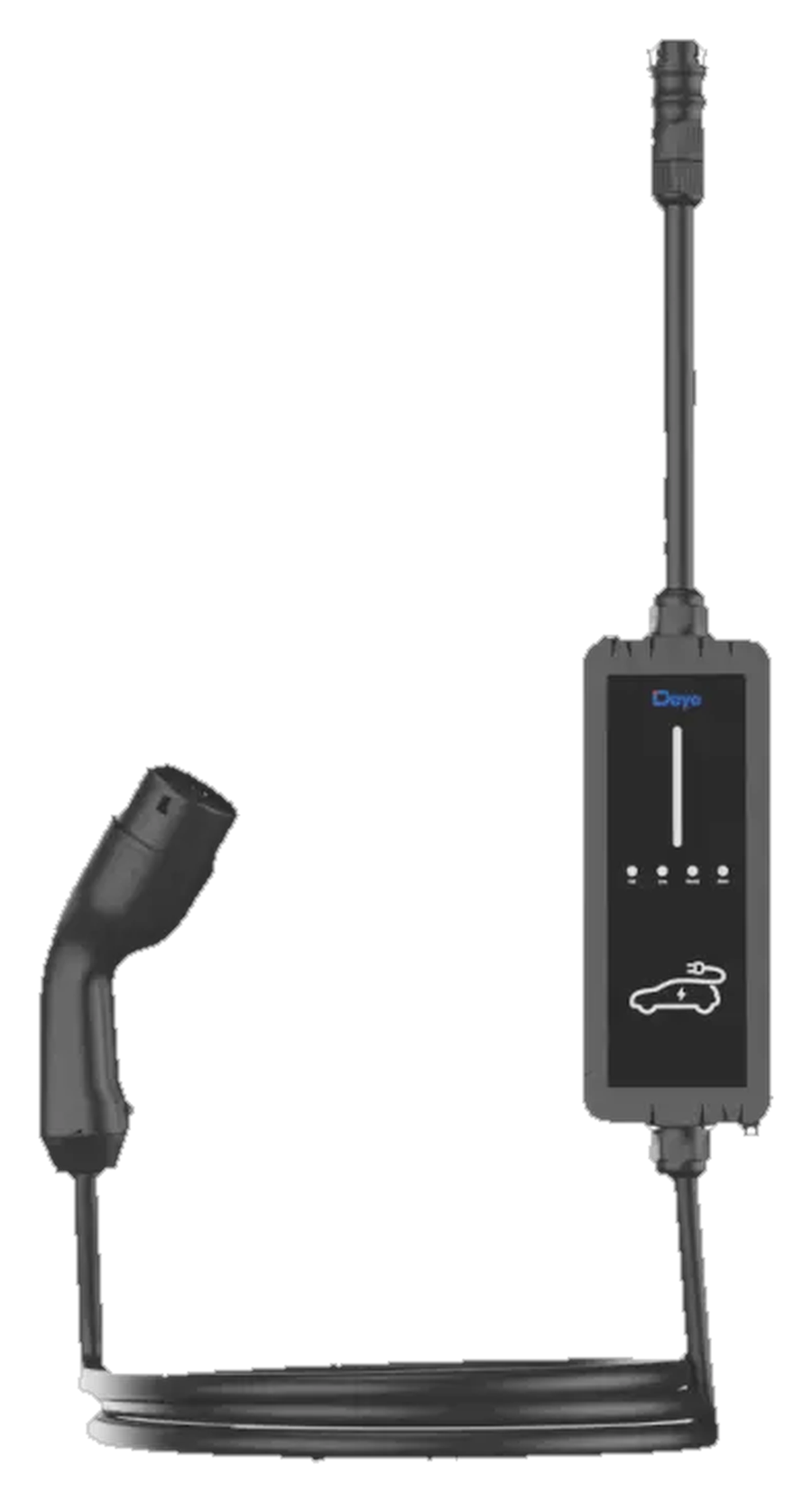

Deye EV charger, 11 kW, SUN-EVSE11K01-EU-AC, three-phase, LoRa / Wi-Fi, IP67 11 kW AC three-phase charger — Type 2, 4.2 m cable, IP66 protection. Compatible with all electric vehicles. Recommended for home use, business use. Controllable over WiFi from the iOS and Android mobile app.
CHARGING TIME ESTIMATE 45 kWh · 20→100%
* Calculated for a standard battery of 45 kWh, charging 20→100%, 90% efficiency. Actual charging time may vary with temperature and the vehicle's BMS.
Free shipping Estimated 1–2 working days
2-year warranty Statutory guarantee of conformity
Secure payment
Technical support
Power & Electrical
Maximum power 11 kW
Supply type AC three-phase
Voltage 400 V
Maximum current 16 A
Frequency 50 Hz
Adjustable current 6 A – 16 A
Connector & Cable
Connectors Type 2
Connection type Tethered cable
Cable length 4.2 m
No. of sockets / ports 1
Protection & Build
IP protection rating IP66
IK protection rating —
Protection 6 mA DC. Protection against overload, over-temperature, overvoltage, undervoltage, short circuit and earth faults.
Housing material ABS plastic, Aluminium
Installation Indoor & outdoor
Mounting Wall, Metal pole
Colours —
Dimensions 10.4 × 26.4 × 5.75 cm
Weight 3.7 kg
Connectivity 4/7
WiFi Yes
Bluetooth Yes
Ethernet (LAN) No
SIM / 4G No
Mobile app iOS & Android Yes, iOS & Android
OCPP No
ISO 15118 (Plug & Charge) Yes
Smart Charging 5/7
Adjustable power Yes
Dynamic load balancing Yes
Static load balancing No
Solar compatible Yes
Scheduled charging Yes
Energy monitoring Yes
Bidirectional No
Access Control 1/3
RFID reader No
PIN access No
App control Yes
Display & UI 0/2
Display No
LED status indicator No
Included Features 0/4
Metal pole No
Power switch No
Key switch No
Cable holder No
Certifications & Commercial
Warranty 2 years
Certifications CE, IEC61851, EN IEC 62311:2020, EN 300 220-2V3.1.1:2017, EN 301 489-1V2.2.3:2019
Electric-Up programme No
Made in China
DATASHEETS & DOCUMENTATION
OPTIONAL ACCESSORIES
SAFETY WARNINGS
- Installation and commissioning must be carried out exclusively by an authorised electrician, in accordance with the user manual and the regulations in force.
- Do not use the charger if the cable, plug or housing shows signs of damage.
- Do not expose to flooding or to environments with a risk of explosion.
- Do not leave within reach of unsupervised children.
- Disconnect the charger from the mains before any maintenance operation.
SUPPORT & ADVICE
Talk directly to Alex
Alex will answer any question about the Deye SUN-EVSE11K01-EU-AC — compatibility with your car, electrical requirements and which solution suits you best.
PROFESSIONAL INSTALLATION installation guide ↗
