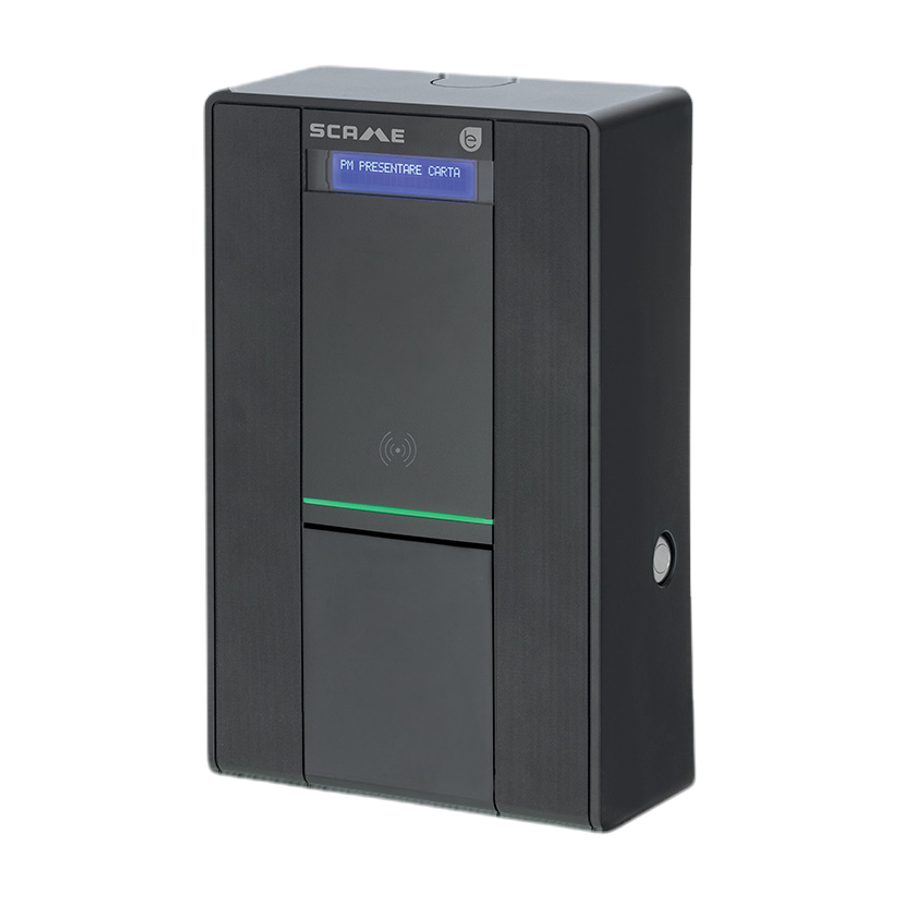

Scame BE-W2 W85-D – stație de încărcare EV 22 kW

SCAME

BE-W2 W85-D

SKU: 205.W85-D In stock at distributor 1 pc

22 kW three-phase charger with Type 2 socket, LCD screen, RFID reader, MID meter, WiFi/Ethernet/4G and OCPP 1.6J. 22 kW AC three-phase charger — Type 2, IP55 protection. Compatible with all electric vehicles. Recommended for home use, business use. Controllable over WiFi from the iOS and Android mobile app.

CHARGING TIME ESTIMATE 45 kWh · 20→100%
This charger 22 kW
~2h
9.6× faster
Household socket 2.3 kW
~17h30

* Calculated for a standard battery of 45 kWh, charging 20→100%, 90% efficiency. Actual charging time may vary with temperature and the vehicle's BMS.

Direct from the distributorThis charger ships directly from the distributor. You can choose any quantity, add its accessories or installation, and combine it with other products from the SAME distributor — but not with products from another source in the same order.
Free shipping Estimated 7–10 working days
2-year warranty Statutory guarantee of conformity
Secure payment
Technical support
SPECIFICATIONS technical guide ↗
Power & Electrical
Maximum power 22 kW
Supply type AC three-phase
Voltage 400 V
Maximum current 3 × 32 A
Frequency 50 Hz
Adjustable current 6 A – 32 A
Connector & Cable
Connectors Type 2
Connection type Socket
Cable length —
No. of sockets / ports 1
Protection & Build
IP protection rating IP55
IK protection rating IK10
Protection External, Built-in DC leakage detector. Residual-current protection is not included: the installer must fit an upstream 3P+N ≥ C32 circuit breaker with a 30 mA Type A residual-current device.
Housing material Engineering plastic, anthracite colour
Installation Indoor & outdoor
Mounting Wall
Colours
Dimensions 23.5 × 37 × 11.5 cm
Weight 4.5 kg
Connectivity 5/7
WiFi Yes
Bluetooth No
Ethernet (LAN) Yes
SIM / 4G Yes
Mobile app Yes
OCPP v1.6J Yes, v1.6J
ISO 15118 (Plug & Charge) No
Smart Charging 5/7
Adjustable power Yes
Dynamic load balancing Yes
Static load balancing Yes
Solar compatible No
Scheduled charging Yes
Energy monitoring Yes
Bidirectional No
Access Control 2/3
RFID reader Yes
PIN access No
App control Yes
Display & UI 2/2
Display LCD Yes, LCD
LED status indicator Yes
Included Features 1/4
Metal pole No
Power switch No
Key switch No
Cable holder Yes
Certifications & Commercial
Warranty 2 years
Certifications CE, IEC61851, EN61851, IEC 61439-7
Electric-Up programme No
Made in Italy
DATASHEETS & DOCUMENTATION
Datasheet PDF
OPTIONAL ACCESSORIES

There are no optional accessories available for this charger at the moment.

SAFETY WARNINGS
  • Installation and commissioning must be carried out exclusively by an authorised electrician, in accordance with the user manual and the regulations in force.
  • Do not use the charger if the cable, plug or housing shows signs of damage.
  • Do not expose to flooding or to environments with a risk of explosion.
  • Do not leave within reach of unsupervised children.
  • Disconnect the charger from the mains before any maintenance operation.
